Infrared (IR) Domes

Infrared (IR) Domes use a CNC high precision machines, grinding high precision spherical domes to meet quality requirements under the condition of precise control of the machine tool and processing environment. The spherical surface is polished to an optical mirror using high precision correction polishing technology, so that the parallelism of the convex surface with respect to the concave surface is less than 0.002mm, ensuring that the image and light propagation characteristics are not distorted.

infrared dome
ir dome
optical glass dome

Specifications of Infrared (IR) Domes

Infrared (IR) Domes product parameter table
ProjectIndicator requirements
1. MaterialZinc sulfide, sapphire, single crystal germanium and other infrared materials
2. Diameter10≤OD1≤300mm ±0.1mm
3. Center thickness1≤T≤20 ±0.1mm or according to customer requirements
4. RadiusThe angular transmittance is ≥93%, and the incidence angle is between ±25 degrees
5. Design wavelengthVisible to infrared wavelength applications
6. CoatingAR R<0.5% @λnm or according to customers needs
7. EccentricityAccording to drawing requirements
8. Effective apertureED>80% aspheric area
9. ApertureUsual grade N≤10 △N≤5 Precision grade N≤3 △N≤0.5
10. Surface quality60-40, 40-20, 20-10

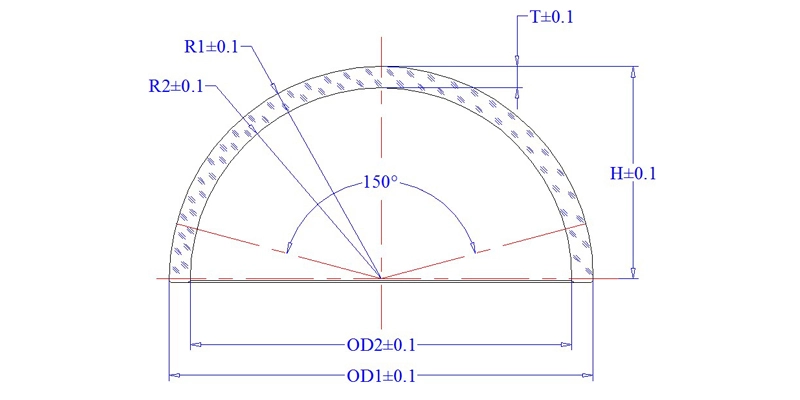

Dimension Drawing of Infrared (IR) Domes

Dimension Drawing of Infrared (IR) Domes

Features of Infrared (IR) Domes

Features of Infrared (IR) Domes
  • One-stop customized production: Solar Valley processes a variety of convex and concave structure infrared (IR) ball cover, the shape of the ball cover can be circular, D-type, hemisphere, super hemisphere and so on.

  • Material: zinc sulfide, sapphire, single crystal germanium and other infrared materials.

  • Ball cover performance: strong resistance to mechanical shock and thermal shock, high surface hardness, good transmittance in the infrared field, suitable for harsh environment. Can be made very thin, suitable for near, middle and far infrared spectrum use, usually used as a protective cover for electronic sensors or detectors in the external environment, used to separate the environment on both sides of the instrument to isolate the inside and outside of each other, so as to protect the internal devices. Used in laser, infrared optics, detectors and other scientific and technological fields, complete specifications, aerospace quality.

    Product indicators:

    1. Maximum external dimension of infrared (IR) ball cover: OD≤φ300mm

    2. Infrared (IR) ball cover can reach the following accuracy levels according to customer requirements:

    Precision level: N≤3 △N≤0.5 Common level: N≤10 △N≤5

  • Surface defect grade: 60-40, 40-20, 20-10 according to customer requirements.

  • Coating: Coating according to customer requirements.
