RB Quartz Capillaries

RB Quartz Capillaries are precision-engineered optical components crafted from high-purity quartz, designed for use in advanced optical communication systems. These capillaries boast an exceptional diameter accuracy within ±0.001mm, ensuring high dimensional precision essential for reliable optical performance. Their superior physical and chemical properties, coupled with outstanding ultraviolet transmission capabilities, make them ideal for a variety of optical applications. Specifically, they facilitate the rapid solidification and bonding of single fibers using ultraviolet adhesive, providing a secure and stable connection. The capillaries’ ability to be polished to a degree comparable to optical fibers allows for the easy achievement of the smooth optical surfaces necessary for efficient fiber connections. This makes RB Quartz Capillaries a versatile solution for enhancing the performance of optical connectors, fiber joints, and fiber couplers in sophisticated optical devices.

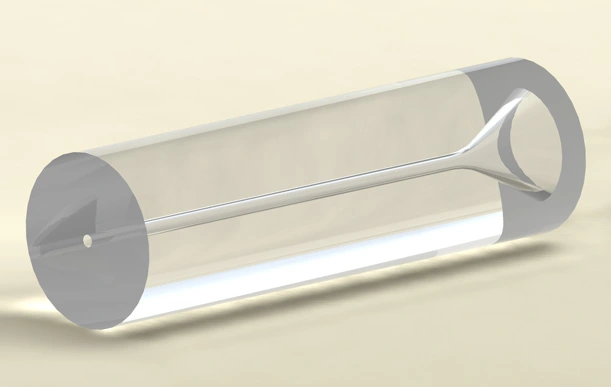

rb quartz capillaries

Specifications of RB Quartz Capillaries

RB Quartz Capillaries Specification Sheet
Material PropertiesMaterial: Quartz,Purity of SiO2>99.99%
Density: 2.2×10³Kg/m³  CTE: 5.5×10-7cm/cm℃
Compressive Strength: 4.8×107Pa (N/m²) (7000psi)
Tensile Strength: >1.1×109Pa (160000psi)
Softening Point: 1683℃   Annealing Point: 1215℃   Deformation Point: 1120℃
Refractive Index: 1.4585
Dielectric Constant: 3.75(@1MHz)     Insulation Strength: 5×107V/m
Dimensions and Tolerances

OD: Φ0.75mm, Φ1.00mm, Φ1.80mm, Φ2.00mm, Φ2.50mm

 Tolerance: OD±0.005mm, or according to customer requirements.

ID: Φ0.053mm, Φ0.081mm, Φ0.127mm, Φ0.250mm

Tolerance: ID±0.001mm, or according to customer requirements.

Length: 5mm, 7mm, 15mm, 20mm
Tolerance: L±0.2mm, or according to customer requirements.
Cone Diameter: Φ0.5±0.15mm, Φ1±0.25mm, or according to customer requirements.
Cone Depth: 0.5~1.5mm, 1~2.5mm, or according to customer requirements.
Coaxiality: 0.008mm
Surface QualityThe cylindrical surface of the product is transparent. The product has no cracks, appearance and surface condition can be made according to customer requirements.
Can be customized according to customer requirements.

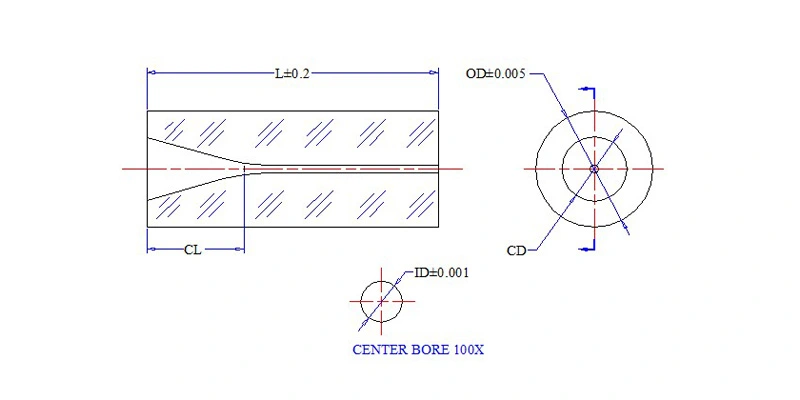

Dimension Drawing of RB Quartz Capillaries

Dimension Drawing of RB Quartz Capillaries

Features of RB Quartz Capillaries

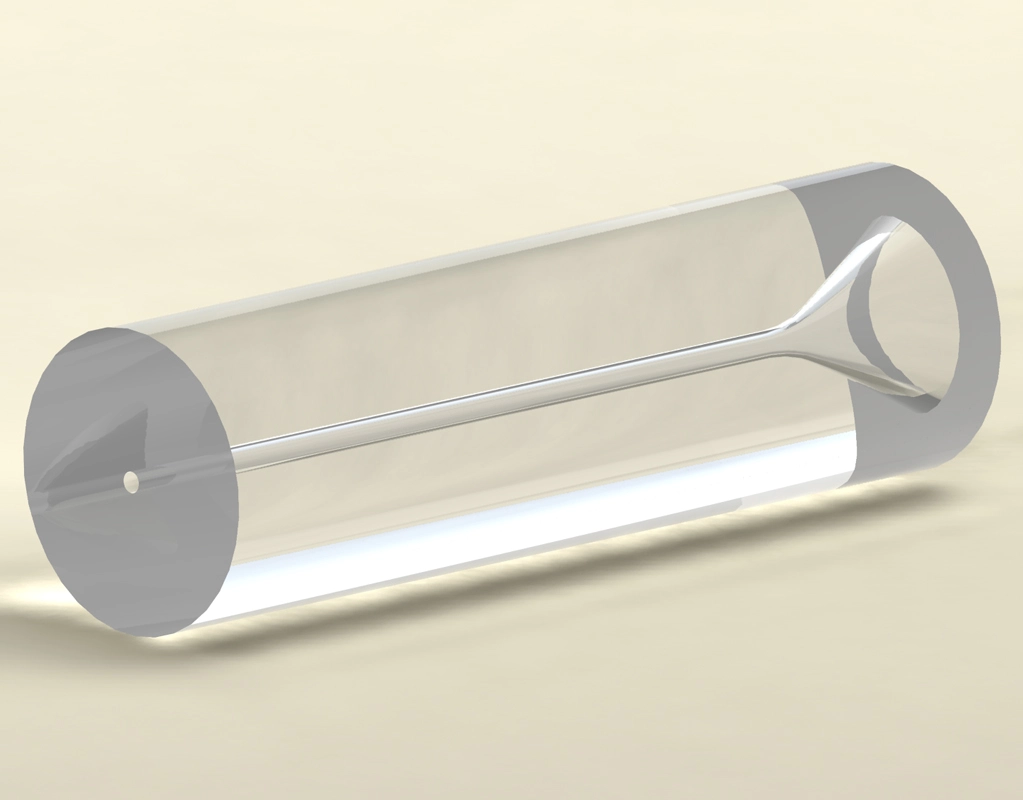

Features of RB Quartz Capillaries
  • Material: high purity fused quartz, silica (SiO2) content > 99.99%, softening point > 1650℃, high strength, high wear resistance, high transmittance.

  • Properties: The quartz capillary is melted and drawn at high temperature. The surface is transparent, which eliminates local hidden micro-cracks on the surface. It is not easy to crack and break when dispensing glue to fix the optical fiber, and the dispensing qualification rate is high.

  • Quartz capillary is a transparent surface with high ultraviolet transmission characteristics, which can quickly cure and bond the capillary and single fiber through ultraviolet adhesive to fix and position the fiber.

  • Environmental Properties: The production process does not use any chemical solvents, and the materials and production process do not contain or involve substances controlled by the European Union.

  • High dimensional accuracy: Quartz capillaries of various inner hole shapes and structures are accurately made by CNC wire drawing tower, and optical fiber dimensional tolerance and positioning accuracy are high.
